Product details:

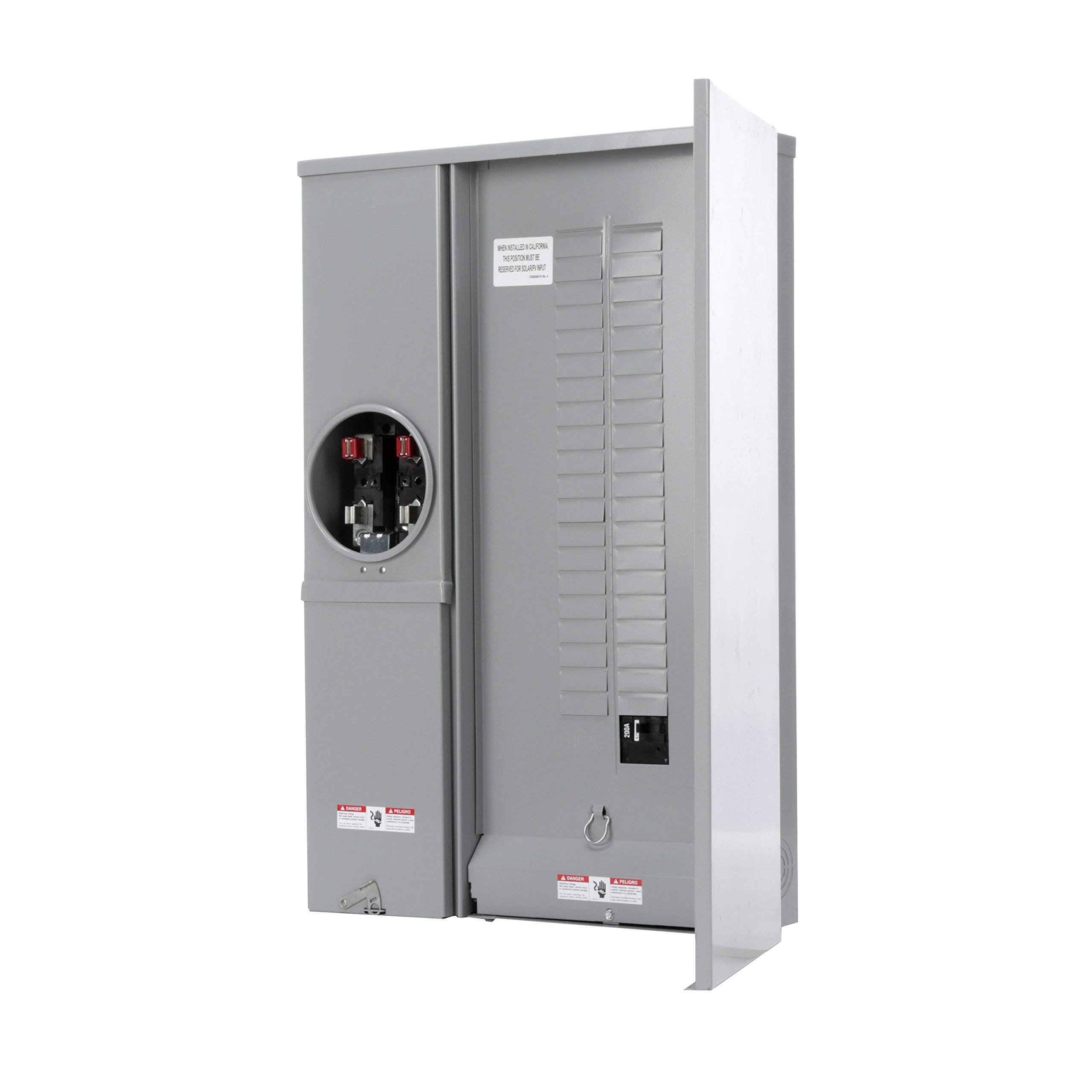

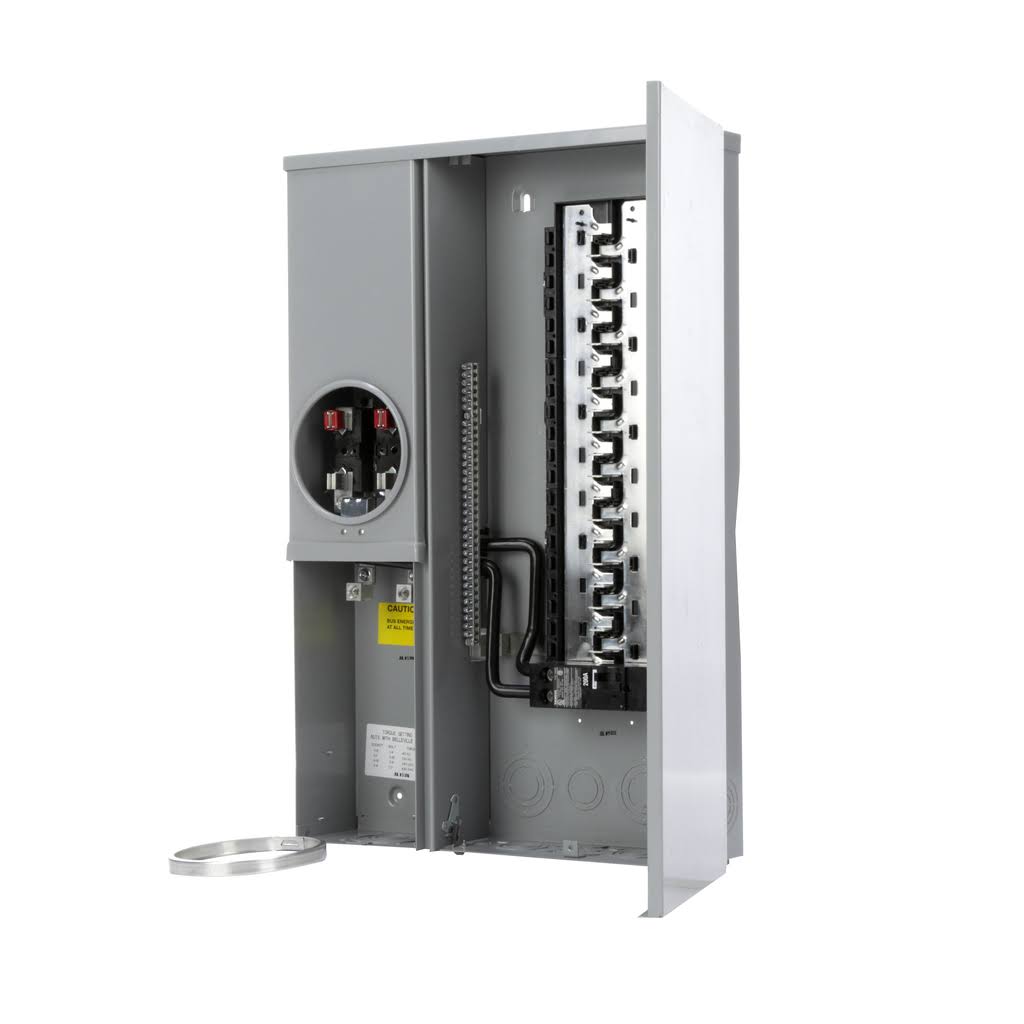

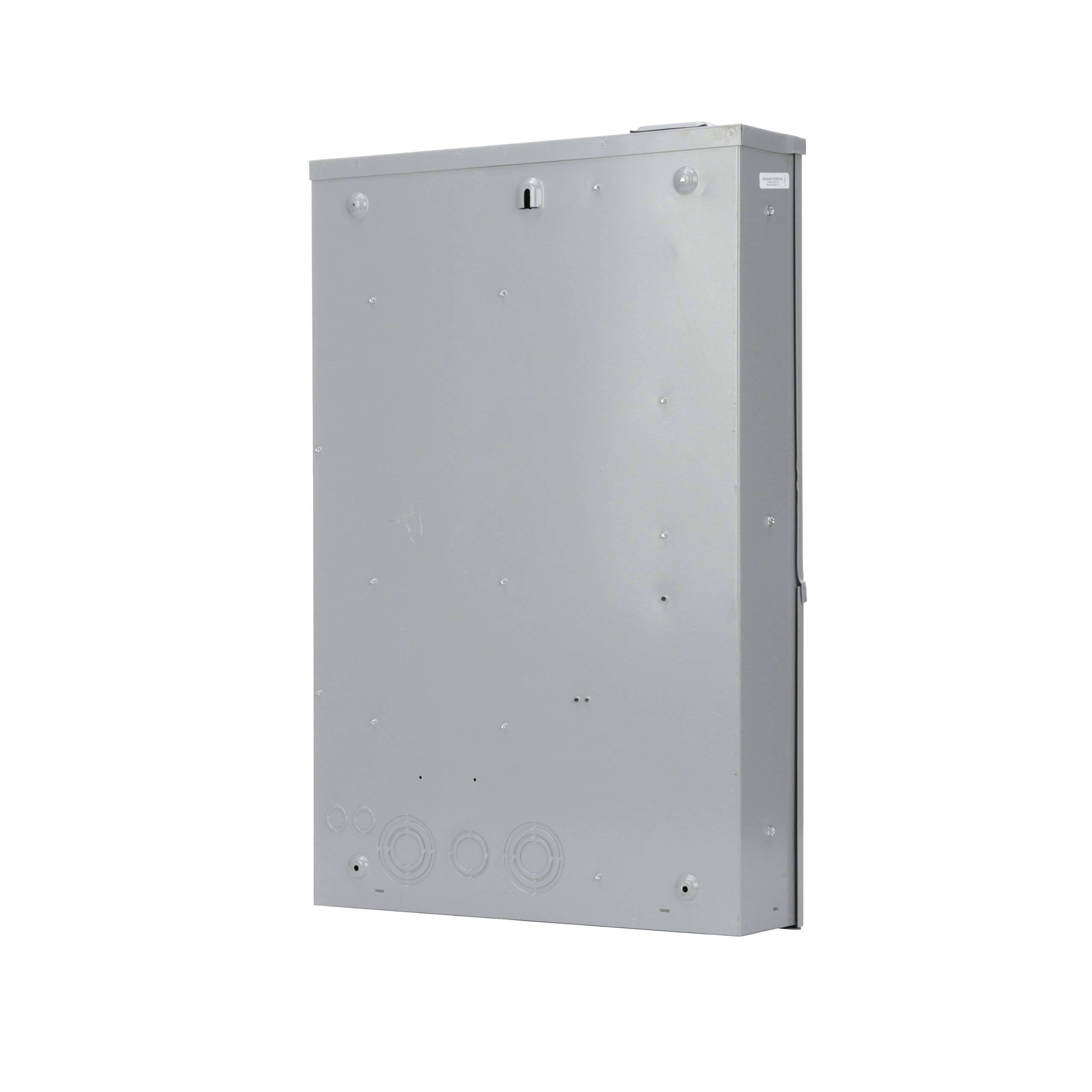

3-Wire 1-Phase 30-Pole low voltage ring meter load center combination has a current rating of 200-Amps, interrupt rating of 22-Kilo-Amps, voltage rating of 120/240-Volts AC at 50/60-Hz. It features 40 circuits and 40S cutouts. The surface mount load center combination with overhead/underground cable entry and padlock option, features tin-plated aluminum extrusions 6061-T6 terminal connection. It has four 1/2-Inch, six 1/2 to 3/4-Inch, two 1/2 to 3/4-Inch-1-Inch, one 3/4-Inch-1-Inch-1-1/4-Inch-1-1/2-Inch-2-Inch and one 1-Inch-1-1/4-Inch-1-1/2-Inch-2-Inch-2-1/2-Inch concentric knockouts. The load center combination is NEMA 3R rated. It measures 21-Inch x 5-1/8-Inch x 32-1/4-Inch. It is suitable for overhead and underground feed applications. The load center combination meets UL and EUSERC standards.
